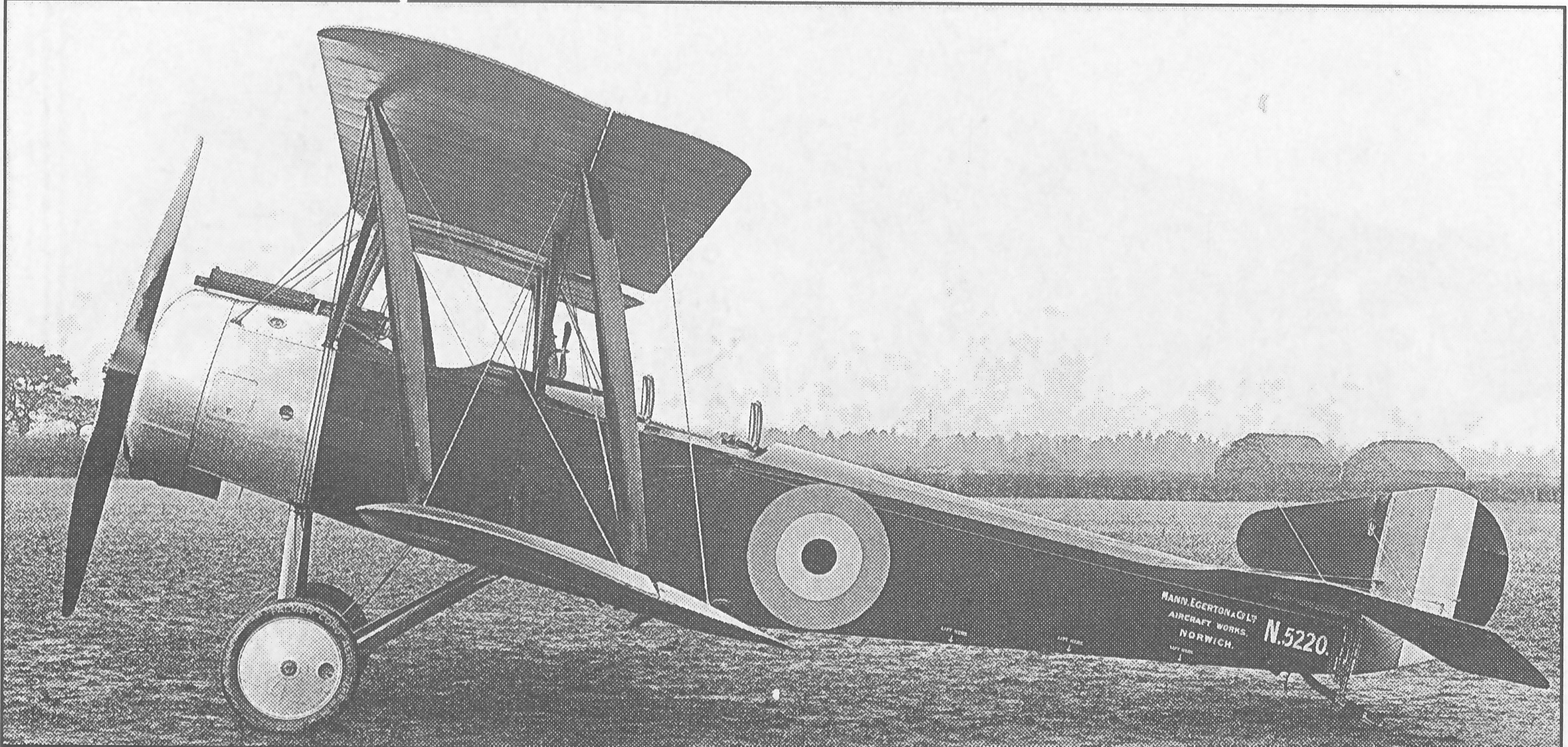

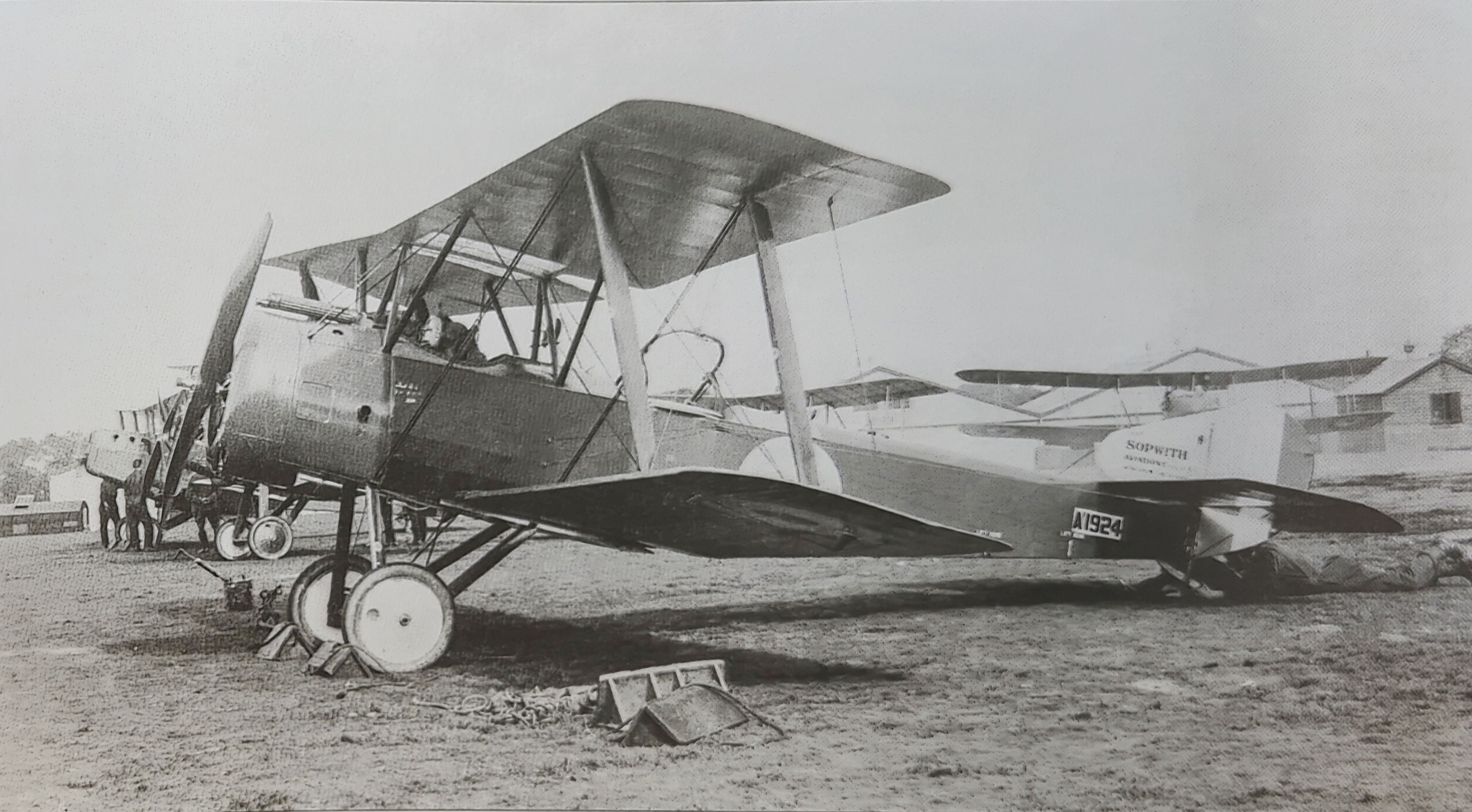

Sopwith 1 1/2 Strutter, door Sopwith Aviation Company

Hoofdrol: Fighter/Bomber

Motor: 1 Clerget 99.7 kW (130hp)

Bewapening: 2 x 7.7 mm machineguns

believed to have been thus nicknamed for the fact that its cabane struts appeared to be interplane struts cut in half, the 1 1/2 Strutter was the first British aeroplane fitted with an interrupted gun, complemented by a trainable gun in the rear cockpit. First flown in December 1915 with an 82 kW (110 hp) Clerget rotary, the type resulted from a naval requirement and showed such capability that large-scale production was undertaken with the naval and army designations Admiralty Type 9700 and Two-seater respectively. The type was produced in two- and single-seat forms, the latter being a bomber operated almost exclusively by the navy. Deliveries began in spring 1916, and total British production of 1513 1 1/2 Strutters was complemented by about 4500 French-built aircraft. Replacement with more agile fighters of higher performance began in July 1917. (source: The International Encyclopedia of Aircraft, Oriole Publishing, 1991)

Spanwijdte: 10.21 m (33.5 ft)

Lengte: 7.97 m (26.1 ft)

Hoogte:

Vleugel oppervlakte:

Leeg gewicht:

Max. gewicht: 974 kg (2150 lbs)

Kruis snelheid:

Max. snelheid: 161 km/h (100 mph)

Plafond:

Bereik: 3.75 hours

Klimsnelheid:
